Guinea Local Manufacturer of China Sinotruk
Our Shacman F3000 tipper truck for sale in Guinea features a systematically reinforced design for its powertrain, chassis architecture, and cooling system, enabling it to withstand years of high-intensity operation.
Our Shacman tipper truck for sale in Guinea is designed for extremely demanding heavy-duty conditions, making it a true powerhouse in the engineering transport field. Thanks to its advanced chassis layout, this model demonstrates exceptional grip and maneuverability on soft surfaces and challenging inclines.
Our Shacman tipper truck for sale in Guinea boasts immense load capacity and extremely high unloading efficiency, significantly shortening project cycles and reducing fleet size, providing unparalleled profitability for mining, infrastructure, and earthmoving contractors.

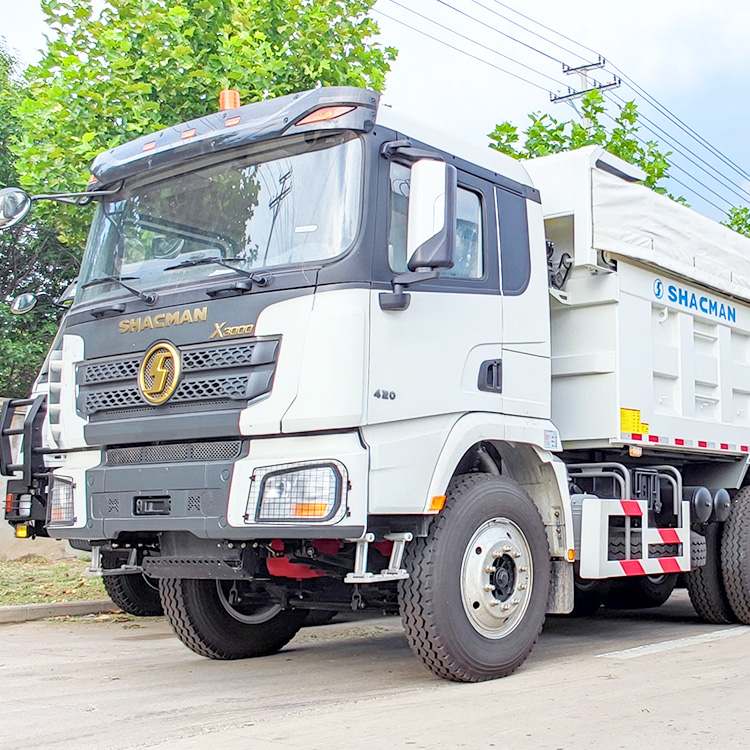

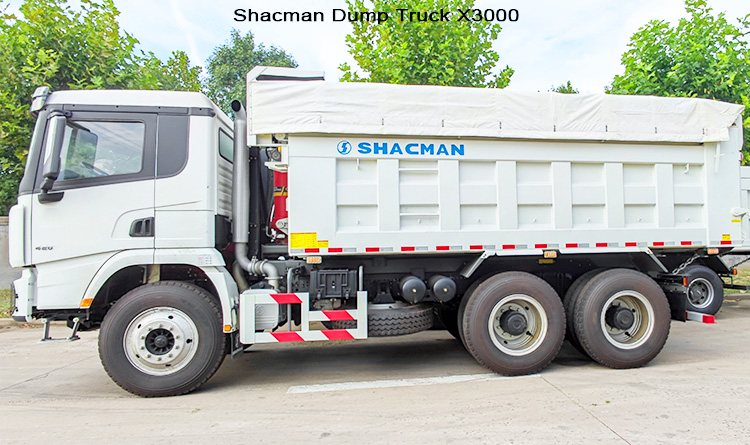

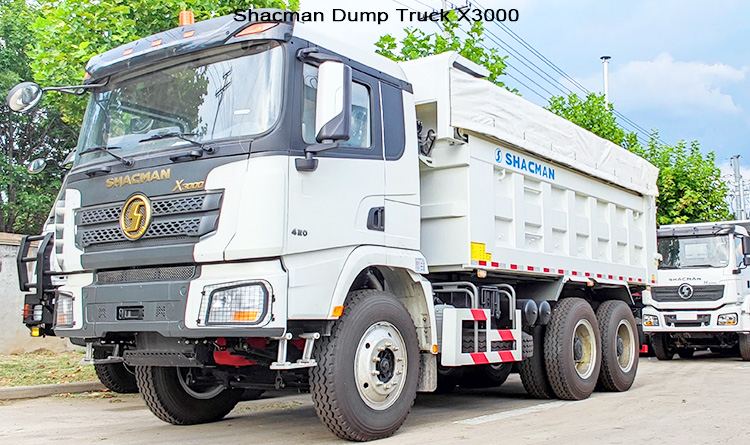

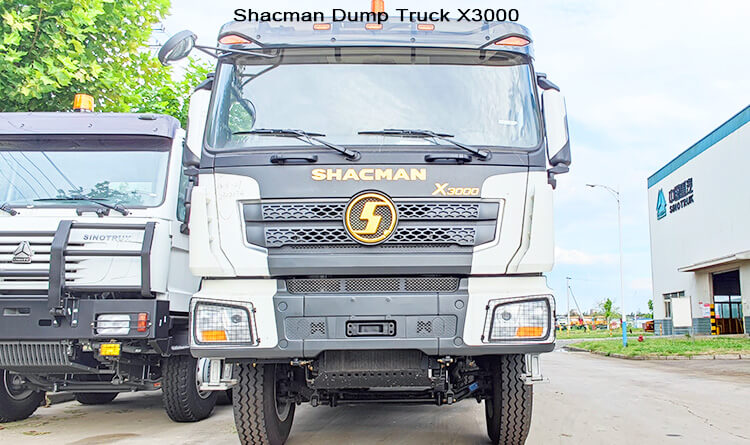

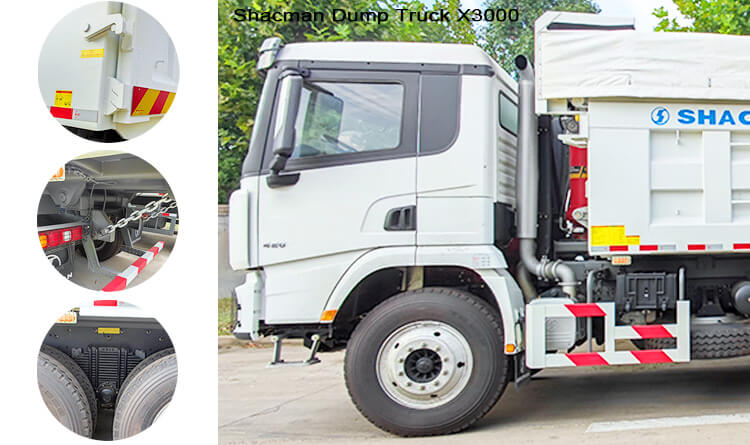

Shacman X3000 Tipper Truck for Sale in Guinea

Shacman X3000 Tipper Truck for Sale in Guinea

Shacman X3000 Tipper Truck for Sale in Guinea

Shacman X3000 Tipper Truck for Sale in Guinea

Model: Shacman Tipper Truck for Sale in Guinea
Traction type: 6X4
Clutch: EATON 430mm
Transmission: FAST 12JSD160TA (12 speeds)
Front Axle: MAN axle, 7.5T
Rear Axle: MAN single reduction driving axle, 13T*2
Ratio: 4.111
Frame: (940-850)*300mm
Suspension: Leaf spring
Tyre: 315/80R22.5 Tubeless Tyre(10+1 pcs)
Fuel tank: 600L
Electrics: Operating voltage: 24V, negative grounded
Performance: Maximum driving speed: 110km/h
Engine model: WP12.380E32 Euro2
Maximum output: 375HP(280kW)
Rated speed: 2200rpm
Shacman Dump Truck Dimension
Wheelbase(mm): 3175+1400mm
Overall size(mm): 7000x2550x3700mm
1. This Shacman 6x4 tipper truck for sale in Guinea is equipped with a Weichai high-torque engine optimized for dumping operations, paired with a Fast heavy-duty multi-speed transmission. This optimal powertrain combination provides strong low-speed starting torque, ensuring easy starts even when fully loaded on steep inclines or muddy surfaces. The transmission offers crisp shifting and extremely high power transmission efficiency, ensuring strong output while maintaining fuel economy.
2. This Shacman 6x4 tipper truck for sale in Guinea features a high-strength double-layer beam structure, effectively handling the immense impact forces generated during unloading and the torsional forces of uneven road surfaces. This significantly enhances the frame's torsional and bending strength, ensuring the chassis remains rock-solid even under years of heavy loading, effectively preventing beam breakage or deformation.

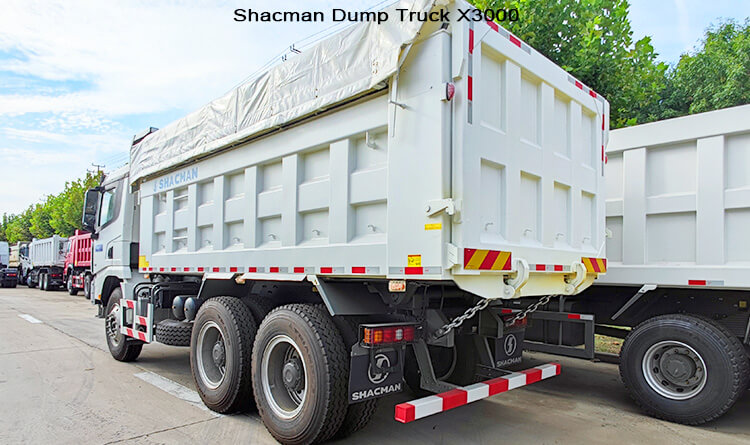

3. The cargo box of this Shacman 6x4 tipper truck for sale in Guinea is constructed from highly wear-resistant, high-strength steel plates, using a modular welding process to ensure overall strength. Its scientifically designed rectangular structure not only effectively lowers the center of gravity and improves driving stability but also reduces material residue during unloading, enabling rapid material discharge. The reinforced floor design can withstand the violent impact of large ore drops, extending the cargo box's service life.
4. This Shacman 6x4 tipper truck for sale in Guinea is equipped with world-renowned high-tonnage wheel reduction axles, providing an extremely high load-bearing capacity. The 6x4 axle load distribution is precisely calculated, and combined with multi-leaf spring suspension, it ensures driving stability under heavy loads while effectively filtering out severe bumps at construction sites.

If you are interested in this Dump Truck Shacman X3000 | Shacman Tipper Truck for Sale in Guinea, welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
