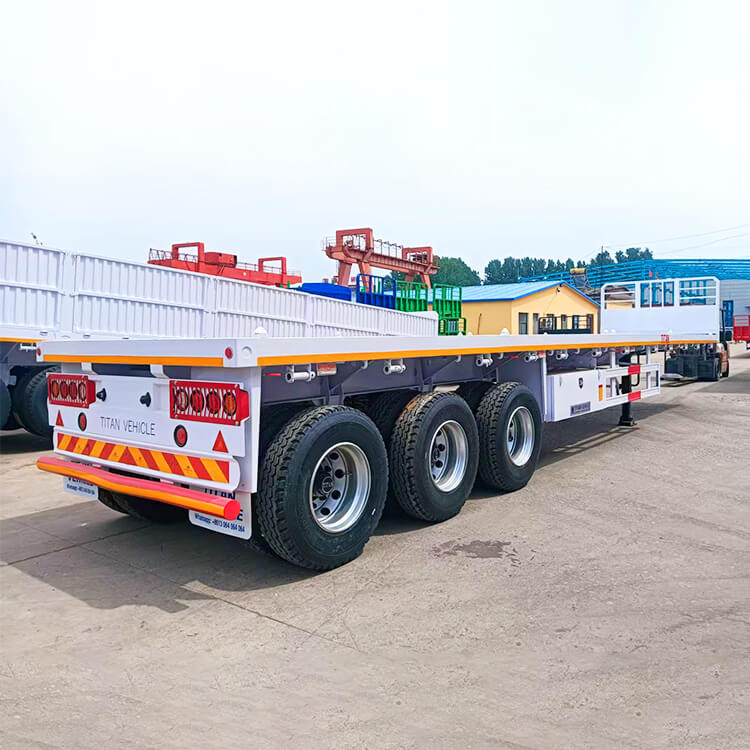

3 Axle 40 Ft Flatbed Trailer 60 Ton

Description of 40 Feet Flatbed Trailer

Our 60 ton 40 ft flatbed trailer for sale in Guinea is designed to meet the most demanding transportation challenges, with its core strengths lying in its exceptional durability and unparalleled adaptability. Whether transporting large machinery, prefabricated components, coiled steel, or other oversized cargo, it provides a safe, reliable, and efficient transportation solution.

Our 60 ton 40 ft flatbed trailer for sale in Guinea utilizes high-strength steel and sophisticated manufacturing processes. The entire vehicle structure maintains excellent structural integrity and stability even under long-term heavy loads, complex road conditions, and frequent use, significantly extending the trailer's lifespan.

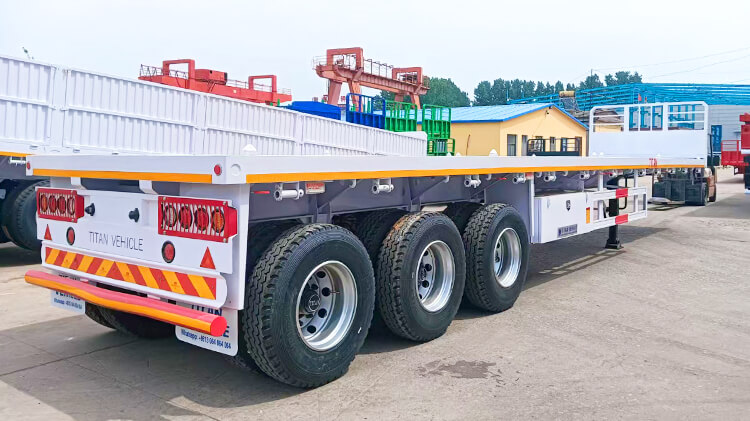

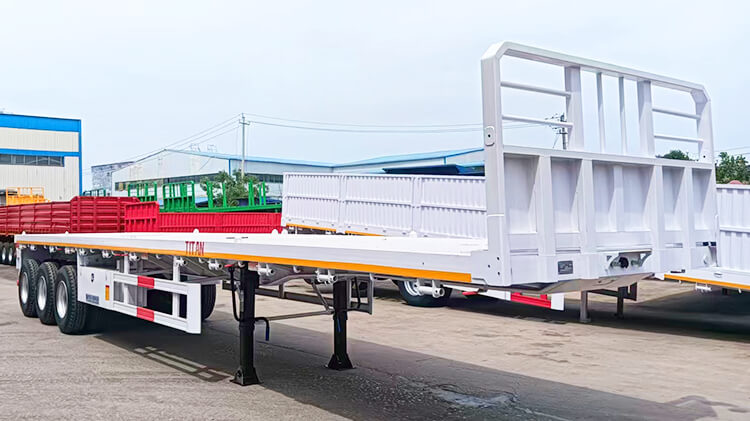

 60 Ton 40 Ft Flatbed Trailer for Sale in Guinea

 60 Ton 40 Foot Flatbed Trailer Price in Guinea

 60 Ton 40 Foot Flatbed Trailer Price in Guinea

 60 Ton 40 Foot Flatbed Trailer Price in Guinea

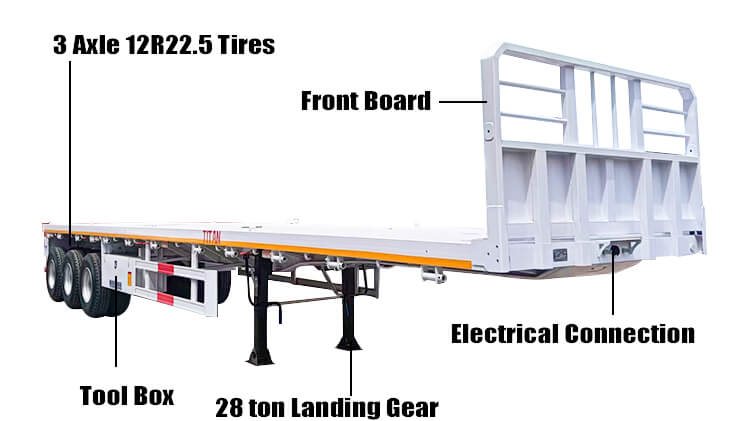

Specification of 40 Feet Flatbed Trailer

Dimension (mm):12500*2500*1520mm

Loading capacity (ton): 60T

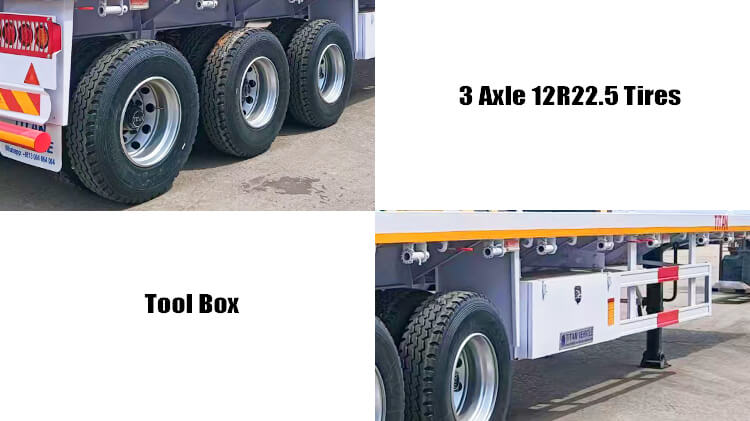

Axles: 3 axles, TITAN brand

Tire: 12 units, 12R22.5

Landing gear: TITAN brand

Light: LED lights

Brake system: WABCO system

Application: Carry 20ft, 40ft container or bulk cargo

Advantage: Solid and durable

Suspension: Mechanical suspension

Floor plate: 3mm diamond plate

Advantages of 40 Feet Flatbed Trailer

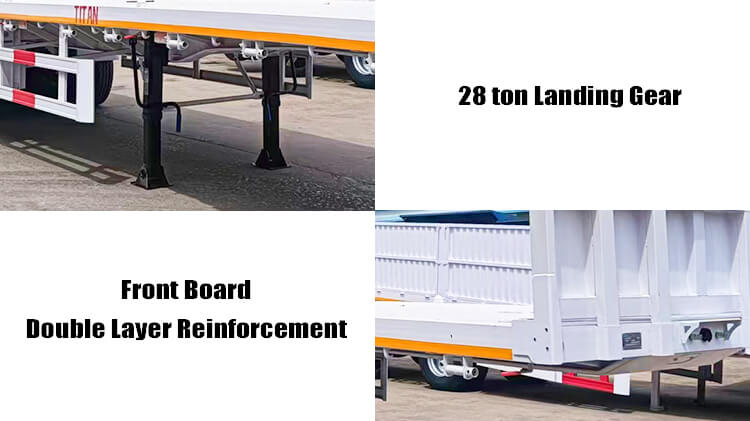

1. This 40 flatbed prices in Guinea features double-layered steel reinforcement at the connection point between the front bulkhead and the cargo platform, forming a rigid connection frame. This design effectively prevents bulkhead deformation, loosening, or cracking at the connection point due to cargo compression and bumps during loading, unloading, or transportation. 1. Particularly suitable for transporting goods such as stone, large cast iron parts, and machinery that are prone to impact on the front bumper, ensuring the front bumper remains robust and reliable, protecting the cargo from tilting forward due to front structural failure.

2. This 40 flatbed prices in Guinea chassis is equipped with a high-strength mechanical suspension system. It uses a multi-blade mechanical suspension made of high-strength alloy steel. Its characteristics include high load-bearing capacity, good elasticity, and durability. This greatly improves the trailer's ride smoothness and stability on rough and uneven roads. This not only protects the cargo but also significantly reduces fatigue stress on the vehicle chassis and main beams, extending the overall vehicle life.

3. This 40 flatbed prices in Guinea features high-strength support beams welded diagonally from the center of the main beam to the side beams on both sides of the main beam web. This is a key design feature that enhances the torsional rigidity of the frame. When the trailer travels on uneven roads or turns, the frame is prone to torsional stress. Diagonal bracing effectively disperses and resists this torsional force, preventing twisting deformation of the main beam and side beams, providing a robust skeletal structure for the entire trailer.

4. The side beams of this 40 flatbed prices in Guinea are made of thicker, higher-strength H-beams. Their cross-sectional height and thickness have been reinforced through calculations, significantly improving the side beams' bending and impact resistance. This makes them less prone to bending, buckling, or permanent deformation when carrying overweight cargo, concentrated loading, or experiencing side impacts. This ensures the long-term flatness of the loading platform and provides a more solid foundation for subsequent installation of accessories such as side rails and tarpaulin supports.

Shipment of 40 Feet Flatbed Trailer

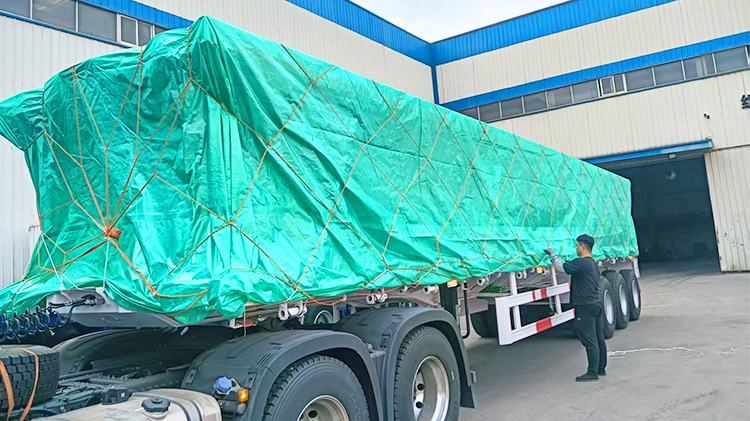

Our 40 ft flatbed trailer for sale in Guinea supports both container and bulk cargo shipping modes. For bulk cargo transportation scenarios, we cover the goods with thick, professional waterproof tarpaulins to fully shield the cargo body. This effectively isolates it from seawater and moisture erosion during transit, preventing dampness, rust, or contamination of the goods and ensuring product safety throughout the transportation process.
