45 Cubic Meters End Dump Trailer

Heavy Duty Dump Trailer Description :

The 45 cubic meters end dump trailer for sale in Guinea includes a carriage body, a movable bottom plate, a guardrail plate, a lifting oil cylinder, a piston rod, and a turning piece, and a movable bottom plate is arranged under the carriage body.

TITAN  45 cubic meters end dump trailer for sale in Guinea has the characteristics of high safety factor, advanced technology, light weight, high degree of automation, simple operation, reliable quality, economical and durable, etc.

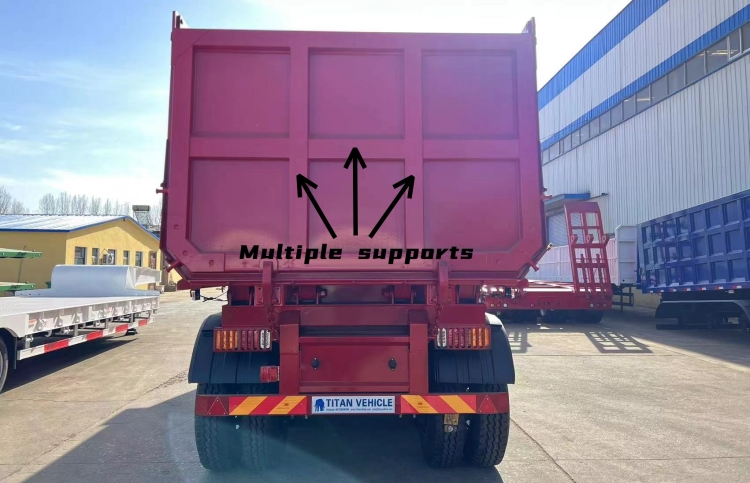

45 Cubic Meters Heavy Duty End Dump Trailer for Sale in Guinea

45 Cubic Meters Heavy Duty End Dump Trailer for Sale in Guinea

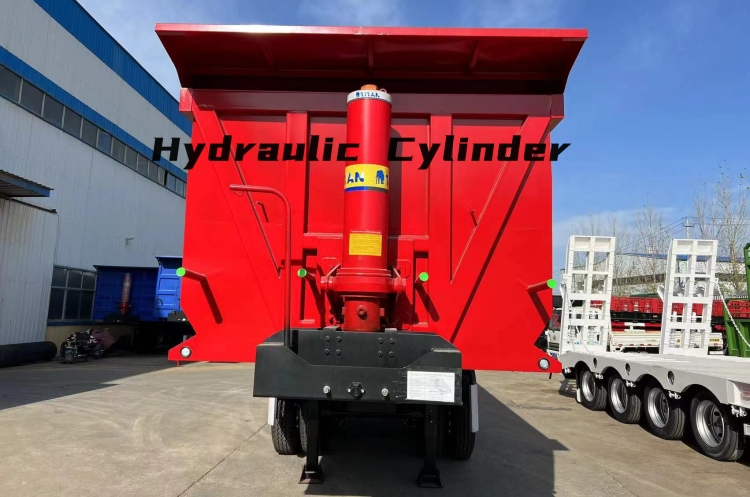

The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

45 Cubic Meters Heavy Duty End Dump Trailer for Sale in Guinea

45 Cubic Meters Heavy Duty End Dump Trailer for Sale in Guinea

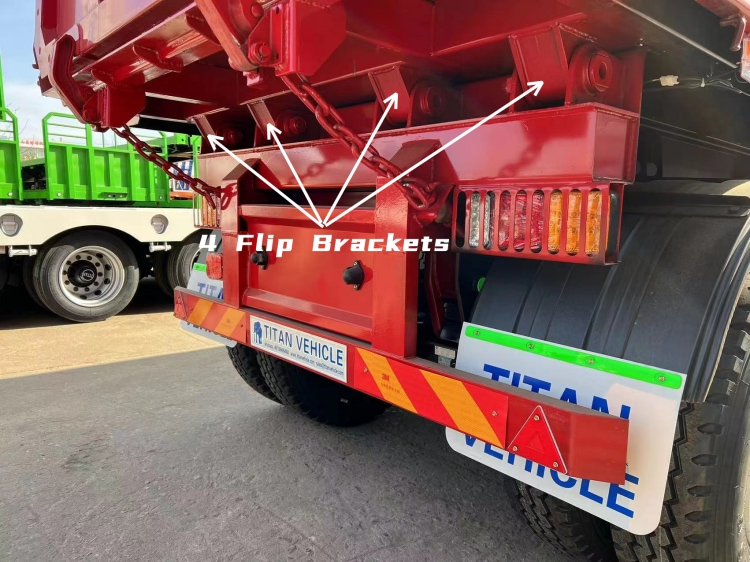

4 units flip brackets, which can make the 45 cubic meters end dump trailer for sale in Guinea more stable when unloading the cargo.

Video of End Dump Trailer :

Heavy Duty Dump Trailer Specification :

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 45 Cubic

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

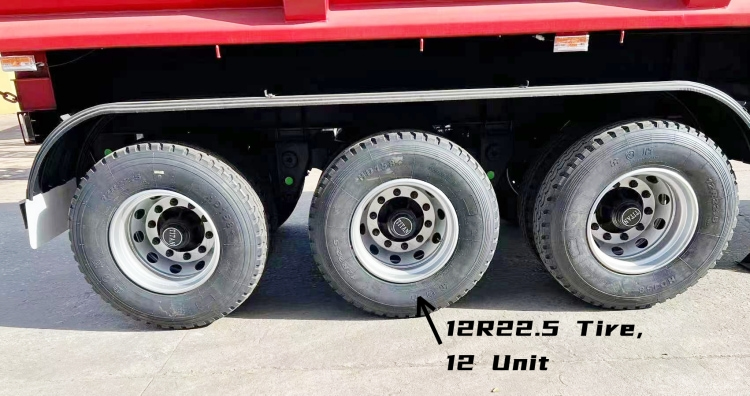

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension
