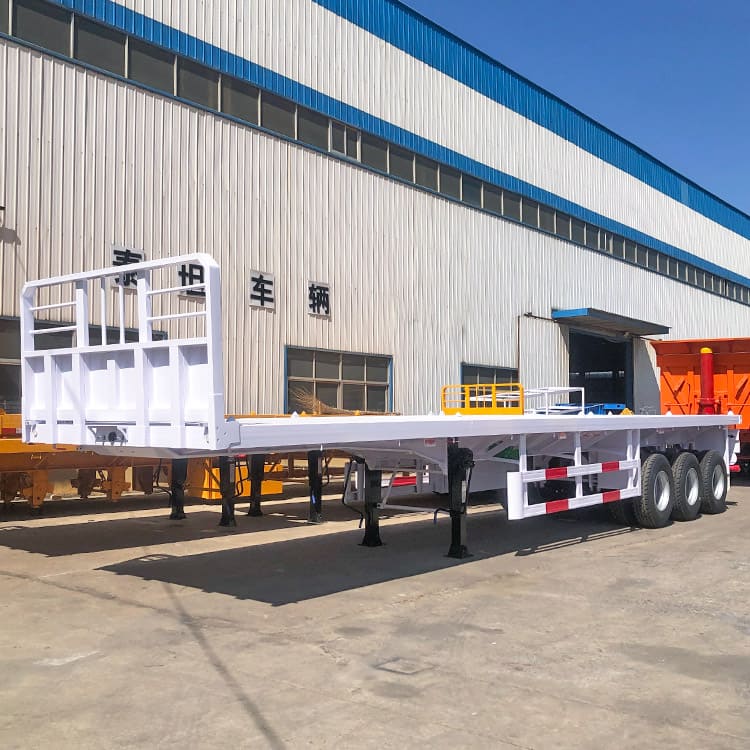

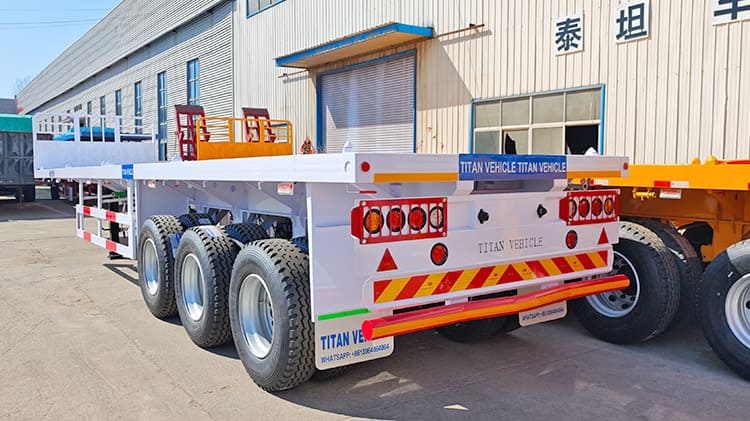

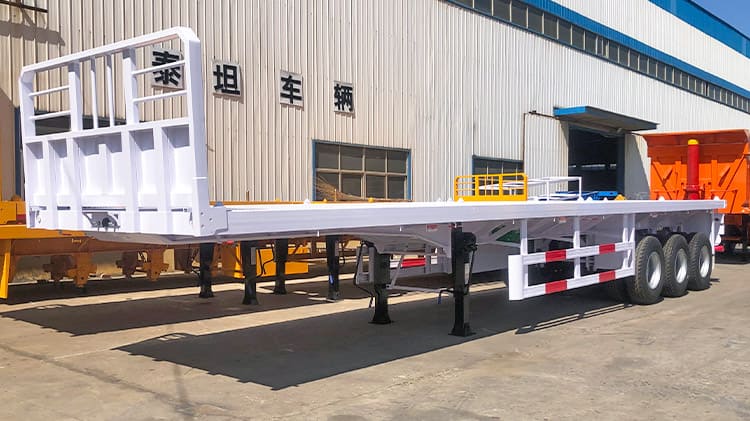

40 Ft Flatbed Semi Trailer

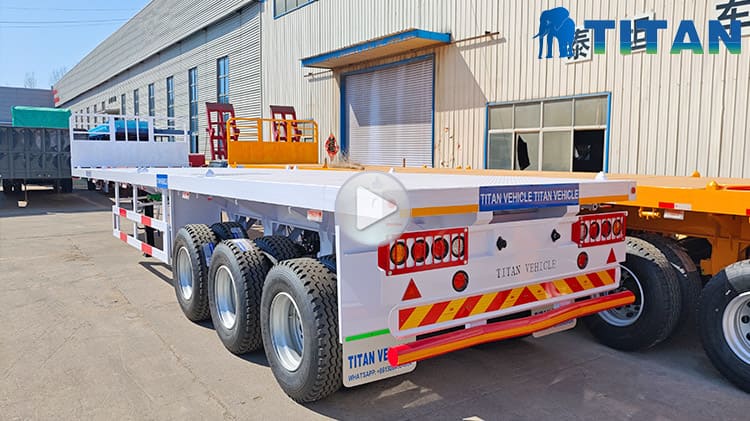

Video of Flatbed Semi Trailer

Flatbed Semi Trailer Price: 9800USD

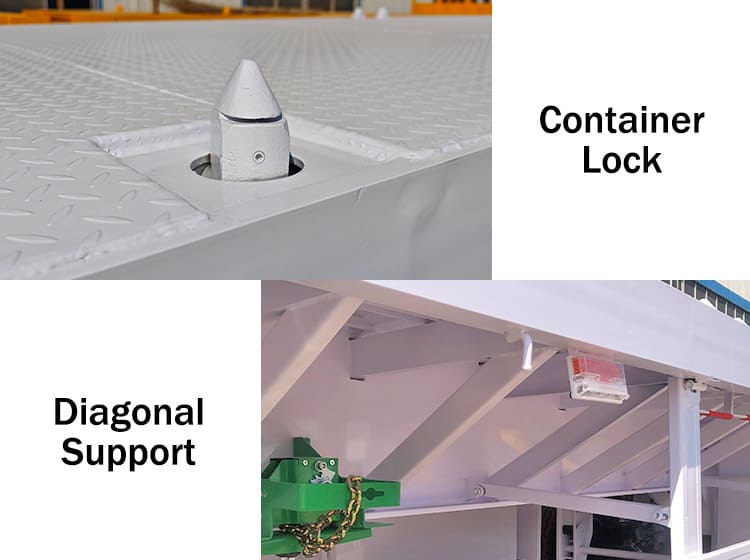

The 40 ft flatbed semi trailer is designed to accommodate both 20-foot and 40-foot containers, thanks to its flexible locking system. These adjustable container locks ensure that different container sizes can be transported safely and securely.

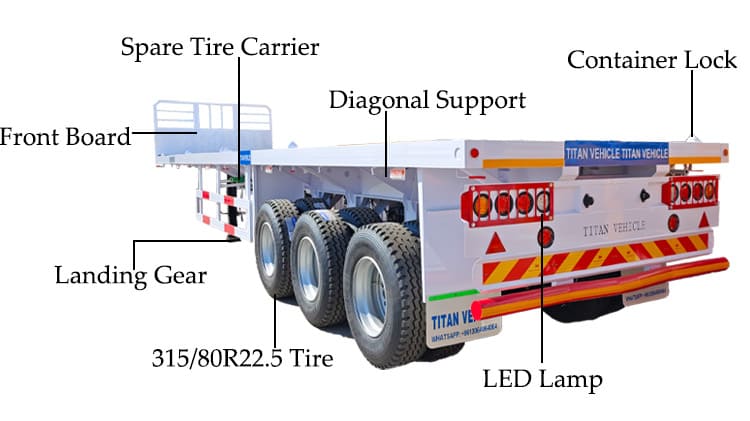

Specification of Flatbed Semi Trailer

Overall Dimension: 12500mm*2500mm*1580mm

Load Capacity: 60 ton

Floor Plate: 3mm thick pattern plate

Side Beam: 160mm high

Trailer Feature: front board

Landing Gear: 28 ton

Axles: 3 axles, 13ton

Suspension: mechanical suspension

Leaf Spring: 10 layers

Bumper: 4mm thick

Lamp: LED Lamp with net

Tire: 12 units, 315/80R22.5

Advantage of Flatbed Semi Trailer

The flatbed semi trailer frame is structurally reinforced to offer greater durability, load capacity, and longevity, making it suitable for demanding logistics operations. To reach this level of performance, the flatbed semi trailer is built using high grade alloy steel, which combines low carbon content with high strength properties. Additional reinforcements have been added to strategic areas of the chassis, increasing its ability to handle repeated stress without compromising structural integrity.

Cargo security is further enhanced with a series of rope tighteners distributed along the flatbed semi trailer price frame. These components are designed for user-friendly operation, enabling quick and efficient fastening or loosening. They help keep cargo firmly in place, particularly when the flatbed semi trailer is required to perform emergency braking or sharp turning maneuvers.

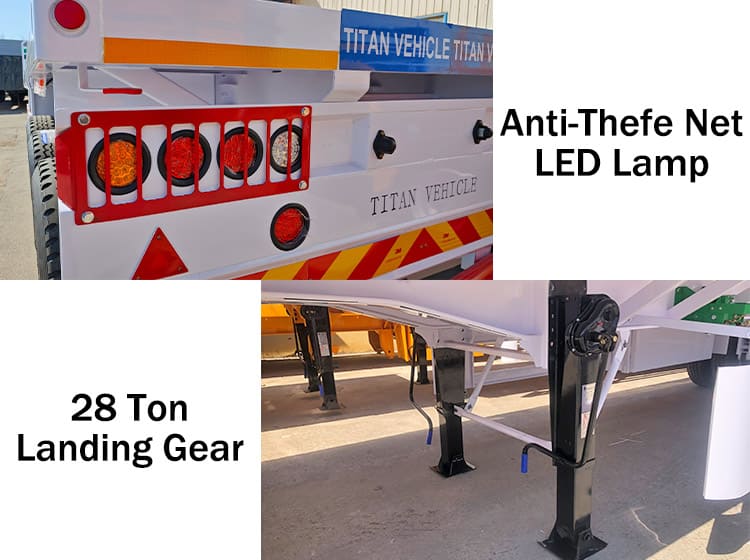

The landing gear system on the tri axle 40 ft flatbed semi trailer has been developed for intensive use under tough working conditions in Guinea. It features a wide-base design that enhances ground stability during loading and unloading. The gear is not only robust but also simple to use, reducing the learning curve for operators in regions such as Guinea and increasing productivity during routine operations.

Braking efficiency is another area where the flatbed semi trailer price excels. It is equipped with 16-ton rated brake pads, which offer quicker stopping response and shorter braking distances compared to conventional systems. The upgrade ensures better control when carrying heavy loads, helping to reduce accident risks and improve road safety.

The 40 ft flatbed semi trailer electrical system is designed with long term performance in mind. Heavy duty power cables are used, encased in high pressure rubber sleeves that resist abrasion and environmental wear. This configuration supports a minimum five-year service life, with the insulation materials contributing to a total expected lifespan of around ten years under standard use.

At the rear of the flatbed semi trailer, a 4mm-thick bumper serves as a critical safety feature. This upgraded bumper is engineered to absorb and disperse energy during rear-end impacts, acting as a barrier between the cargo and external force.

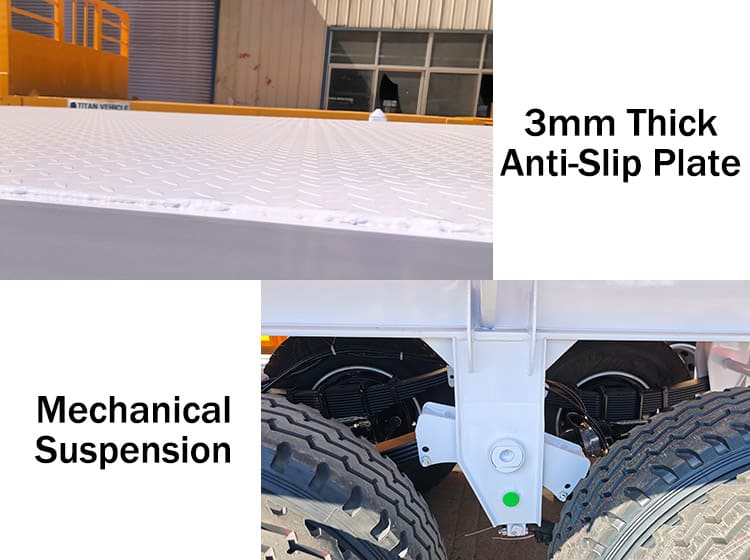

For the flatbed semi trailer price floor, TITAN has selected a 3mm thick patterned steel plate, going beyond the 2mm standard found in many models. This thicker base plate offers improved resistance against daily wear, load pressure, and sudden impacts.

The anti-slip pattern not only adds visual texture but also improves safety during cargo handling, especially under wet or dusty conditions often found in regions like Guinea.

Another critical structural element is the traction plate, which plays a major role in connecting the flatbed semi trailer to the tractor. This component is manufactured using a 12mm solid steel sheet, ensuring a strong and secure coupling.

The design supports flexible movement during cornering and minimizes the chance of detachment during transport. Additionally, the traction plate has a limited shock-absorbing effect, which helps reduce vibration and contributes to smoother towing, especially on Guinea’s uneven terrain or in poor weather conditions.

Shipping of Flatbed Semi Trailer

To accommodate the shipping needs of international clients, especially in Guinea, TITAN offers multiple delivery methods such as container loading and roll-on/roll-off transport. Prior to dispatch, each flatbed semi trailer price undergoes a comprehensive protective treatment.

This includes an application of anti-rust wax followed by waterproof covering, which creates a layered defense against moisture, salt, and coastal air exposure. This packaging ensures that the 40 ft flatbed semi trailer arrives in good condition, ready for immediate deployment upon delivery.
