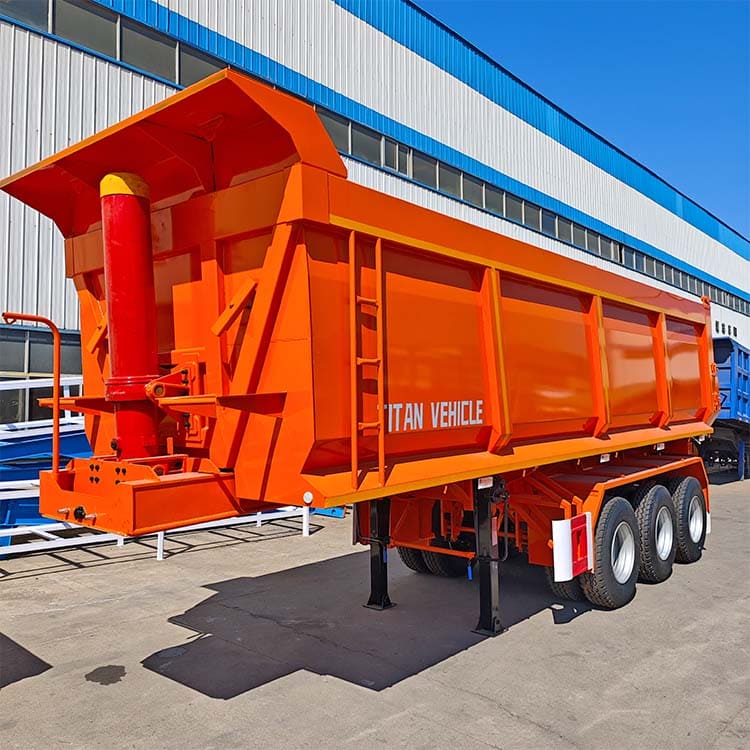

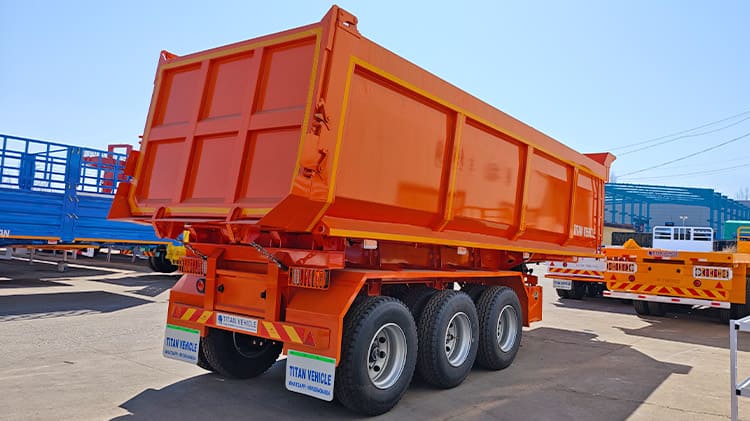

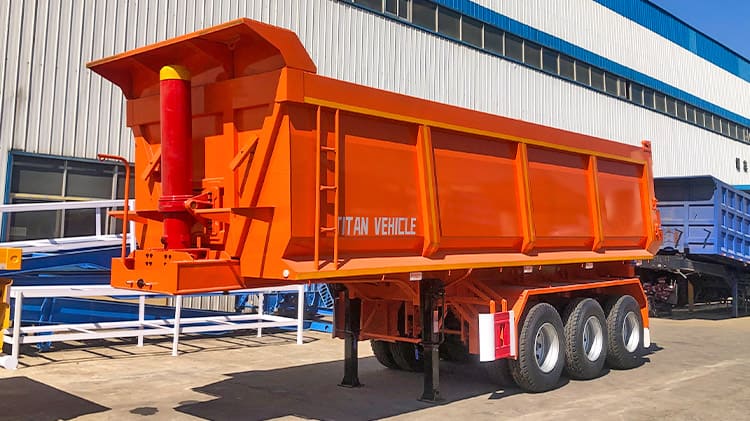

3 Axle Dump Trailer

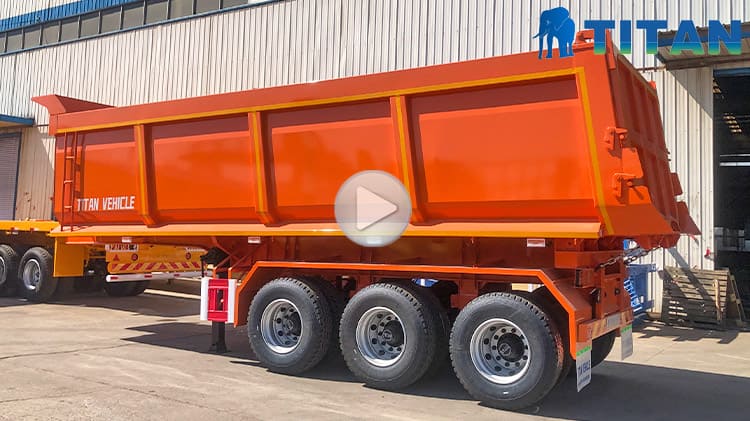

Video of Dump Trailer

Dump Trailer Price: 15200 USD

The dump trailer for semi truck is purpose-built to meet the demands of Guinea freight transportation, where strength, functionality, and user-friendliness must align. Its structure reflects a well-balanced design that combines robust load capacity, structural integrity, and ease of operation. The balance makes a dependable solution for transporting heavy bulk materials while accommodating a variety of loading and unloading situations.

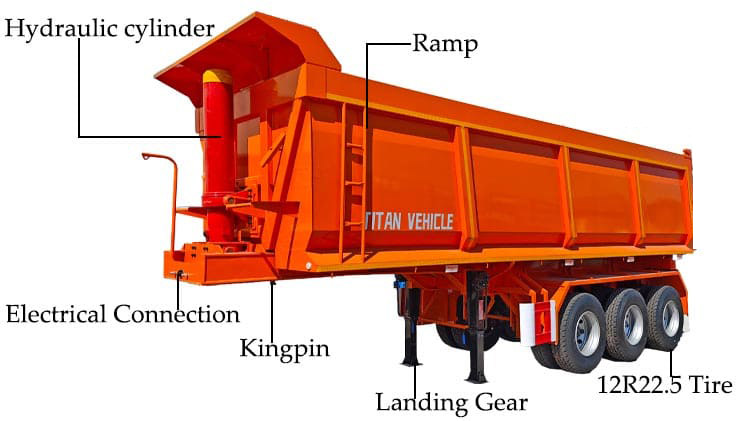

Specification of Dump Trailer

Dimension: 8500mmx2500mm x3950mm

Load Capacity: 60 ton

Tipping System: hydraulic cylinder system

Landing Gear: 28 ton

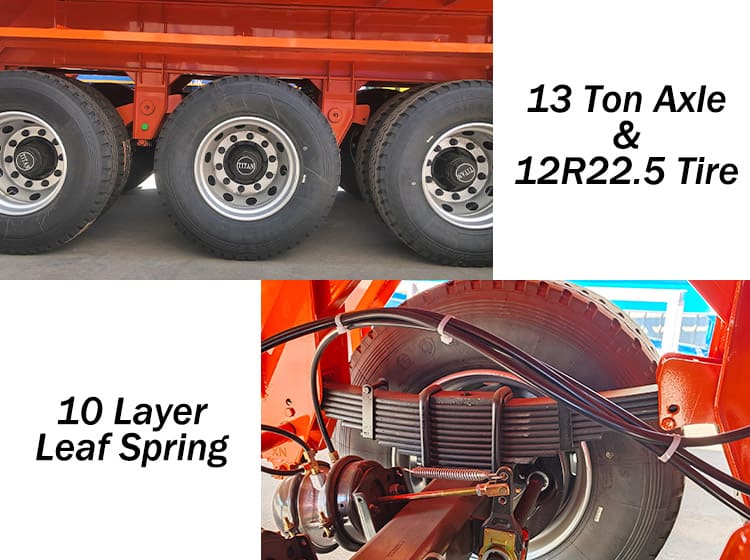

Axles: 3 axles, 13ton, TITAN brand

Kingpin: JOST brand 2.0 /3.5inch

Leaf Spring: 10 layers

Suspension: mechanical suspension

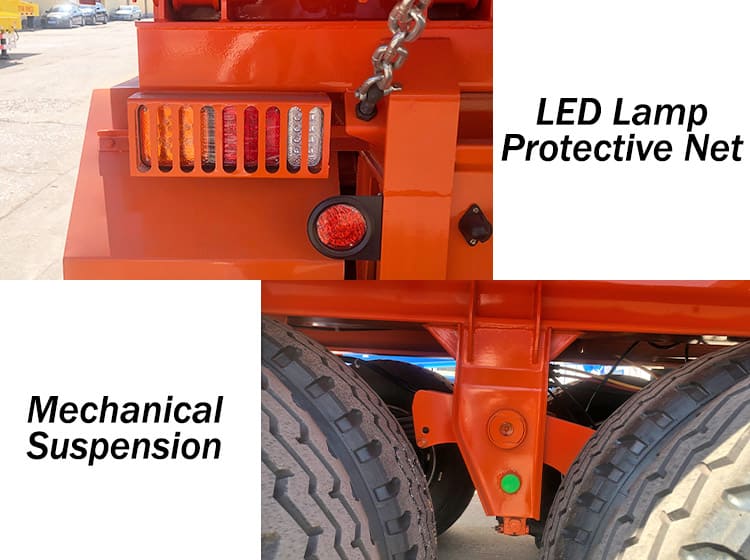

Lamp: LED Lamp with protective net

Tire: 12 units, 12R22.5

Advantage of Dump Trailer

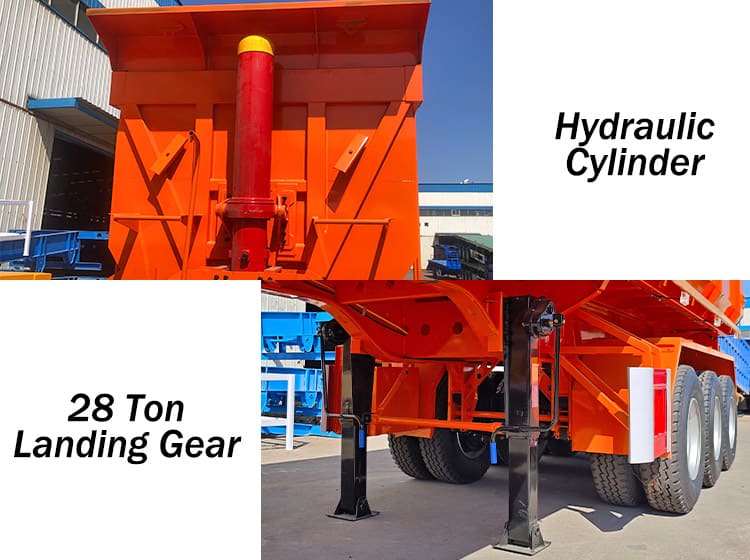

One of the core components contributing to the dump trailer for sale overall performance is its hydraulic cylinder system. Designed with a compact and integrated structure, the hydraulic mechanism plays a critical role in raising and lowering the body efficiently. Its layout is especially advantageous in restricted workspaces, where maximizing usable space is crucial. By minimizing the need for manual handling and accelerating tipping operations, the hydraulic system enhances both speed and labor efficiency during cargo transfers.

The primary beam of the dump trailer for semi truck is crafted from T700-grade high strength steel. Compared to conventional materials, T700 steel offers superior tensile properties and a higher load-bearing threshold. The choice of material ensures the beam retains its structural shape and reliability under heavy loads, contributing to the dump trailer stability even in demanding applications.

Additional reinforcement is found along the edges of the side beams, where three steel support columns are installed. These high strength reinforcements help resist lateral forces, especially when transporting Guinea uneven loads or maneuvering sharp turns. Their inclusion strengthens the dump trailer for sale body against potential deformation, thus enhancing both safety and structural longevity during long-term use.

The mechanical suspension system is specifically enhanced to tackle harsh road environments. It utilizes a ten-leaf spring design made from high-strength steel, which effectively absorbs shocks and vibrations caused by rough surfaces. The type of suspension protects both the dump trailer for sale frame and the transported cargo during transit.

The suspension is well-suited for use in rugged regions like Guinea, where roads may be unpaved or uneven. In addition, the suspension system is engineered to perform reliably in hot and humid climates, offering resistance to both heat damage and corrosion.

To ensure reliable braking performance under heavy duty conditions, the dump trailer for semi truck is equipped with 16-ton brake pads. These pads offer quicker response times and improved braking efficiency, which is particularly vital when hauling large volumes of material. The setup provides peace of mind in emergency scenarios by shortening braking distances and improving overall road safety.

Another critical component is the flip stand, which offers support when the dump trailer for semi truck rear section is lifted during unloading. The stand helps distribute weight more evenly, relieving pressure from the main frame and preventing localized stress. The design choice reduces wear on high-stress points and extends the working life of the dump trailer.

The connection between the dump trailer for semi truck and the truck tractor is another structurally important area. The traction plate is cut from a single steel sheet and features a thickness of 12 mm.

The design ensures not only a secure mechanical connection but also allows for smoother force transmission during operation. It supports stable movement during turns and reduces impact shock, contributing to both safety and driving comfort.

Shipping of Dump Trailer for Sale

To protect each unit before overseas delivery, TITAN applies a comprehensive anti-corrosion treatment. First, a layer of protective wax is coated over the dump trailer to create a moisture-resistant barrier. Following that, the entire dump trailer for semi truck is wrapped in waterproof tarpaulin. The dual-layer shielding system defends against environmental factors such as sea air, rain, and temperature fluctuations during transit. These precautionary measures help ensure the dump trailer for sale arrives in optimal condition and is ready for immediate deployment upon delivery.
